Battery Tool (BT43C)

1, When the tool is used for production logging during wireline and tubing conveyed operations, the wireline and tubing cannot provide power supply.

2, Battery Tool (BT) is chosen to supply power to complete the logging operation.

3, Selecting different Battery Tool(BT) provides varying capacities, under the working current of different tools strings, the logging time varies.

4, Each time it is used, record the current and time used by the battery, and calculate and assess whether the remaining capacity of the battery can meet the next logging operation.

Battery Tool (BT43C).pdf


When the tool is used for production logging during wireline and tubing conveyed operations, the wireline and tubing cannot provide power supply. Battery Tool (BT43C) is chosen to supply power to complete the logging operation.

Selecting different Battery Tool(BT43C) provides varying capacities, under the working current of different tools strings, the logging time varies. Each time it is used, record the current and time used by the battery, and calculate and assess whether the remaining capacity of the battery can meet the next logging operation.

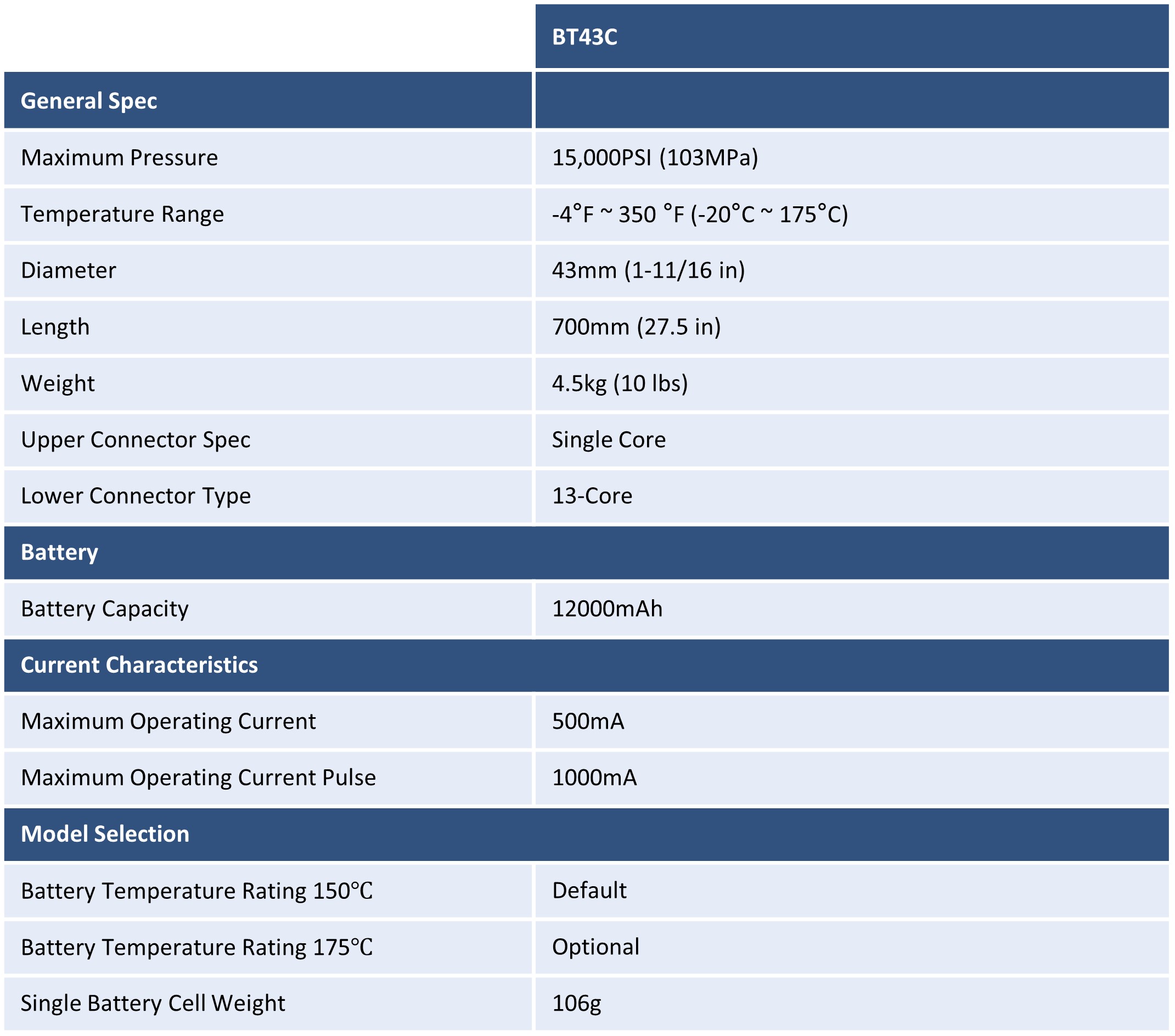

Specifications:
